1. The advantages of the disk lock ring lock scaffold
① High construction efficiency. One person with one hammer can also quickly complete the construction, saving time and labor costs.
② The site image is "high and lofty". Ring lock scaffold up, the site to get rid of the "dirty mess."
③ material consumption. No need to use fasteners, less than half of the traditional scaffold steel, frame body is more firm and stable.
④ The safety of construction personnel is more guaranteed. The bearing capacity and stability of the disk lock and ring lock scaffold frame are better.
⑤ Long service life, the cost of a single use is lower than other scaffolding. Disk lock and ring lock scaffold waterproof, fire and rust, no maintenance, save money and trouble.
2. Type of dick lock ring lock scaffold
The type of dick lock ring lock scaffold is mainly divided into: Z type, B type
Vertical standard rod connection is divided into two forms: outer sleeve connection and inner connecting rod connection.
Z type: 60 series, vertical standard rod φ 60mm×3.2mm, horizontal rod, horizontal ledger rod and diagonal rod φ 48mm×2.5mm, support base jack φ 48mm, mainly used for heavy support, such as bridge engineering, the general use of internal connection.
Type B: Namely, 48 series, vertical standard rod φ 48mm×3.2mm, horizontal ledger rod, horizontal diagonal rod φ42mm×2.5mm, vertical diagonal rod φ 33mm×2.3mm, pedestal base jack φ38mm, mainly used for housing and decoration, stage lighting frame and other fields, the general use of outer sleeve connection, the standard module of the vertical stand pole is generally 500mm, The standard module of the horizontal ledger rod is generally 300mm.
3.The construction of dick lock ring lock scaffold bracket

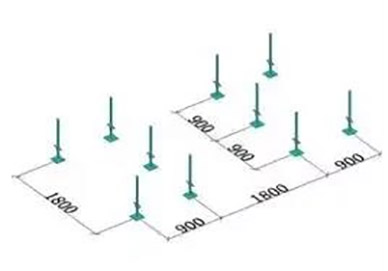

Step 1: Place adjustable base jack

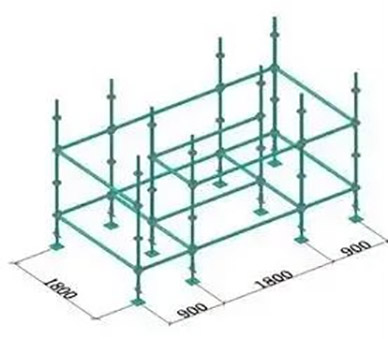

Step 2: build the base frame body

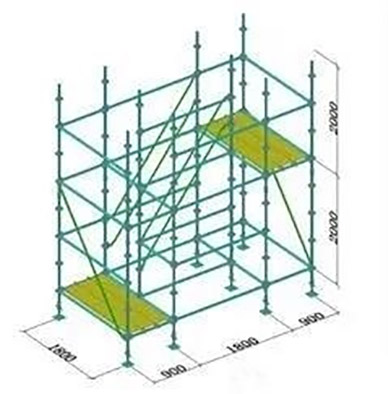

Step 3: build diagonal rod, lay steel plank platform

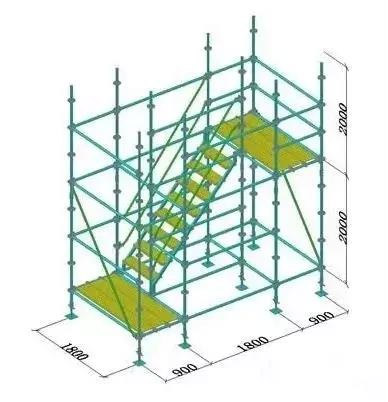

Step 4: set up ladder beam, laying step

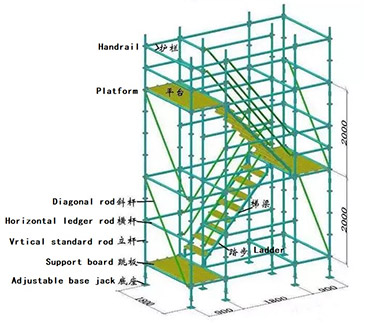

Step 5: according to the use requirements of the height, safety acceptance after standard use
4. Dick lock ring lock scaffold scaffold erection requirements for attention
(1) Step distance requirement of internal support: step distance should not exceed 1.5m when the height of installation is less than 8m, and step distance should not exceed 1.5m when the height of installation is more than 8m.
(2) Independent high support mold height requirements: for long strip independent high support mold frame, the ratio of the total height and the width of the frame body H/B should not be greater than 3.
(3) Adjustable head jack requirements: the exposed length of the screw of the adjustable bracket is strictly prohibited to exceed 400mm, and the length of the bracket inserted into the vertical rod or double channel steel joist shall not be less than 150mm.
(4) Adjustable base jack requirements: the exposed length of adjustable base adjusting screw is not more than 300mm, and the height of the bottom horizontal rod from the ground of the sweeping rod should not be more than 550mm.
(5) The continuous height requirements of double exclusive scaffolding: not more than 24 meters.
(6) double row scaffold body step distance, span requirements: step distance appropriate 2m, vertical rod distance appropriate 1.5m or 1.8m, and should not be greater than 2.1m, vertical rod distance appropriate 0.9m or 1.2m.
(7) Diagonal rod layout requirements: within 24 meters of the allowable height required by the specification, a vertical diagonal rod should be set for every 5 spans of each layer along the outer side of the frame body or steel pipe scissors support for fasteners should be set for every 5 spans.
(8) For each step of the horizontal rod layer of double row scaffolding, when there is no hook steel foot plate to strengthen the stiffness of the horizontal layer: horizontal diagonal rod should be set every 5 spans.
(9) Requirements on wall parts: the distance between the connecting point of the wall parts and the frame body and the disk ring lock joints should not be greater than 300mm.
