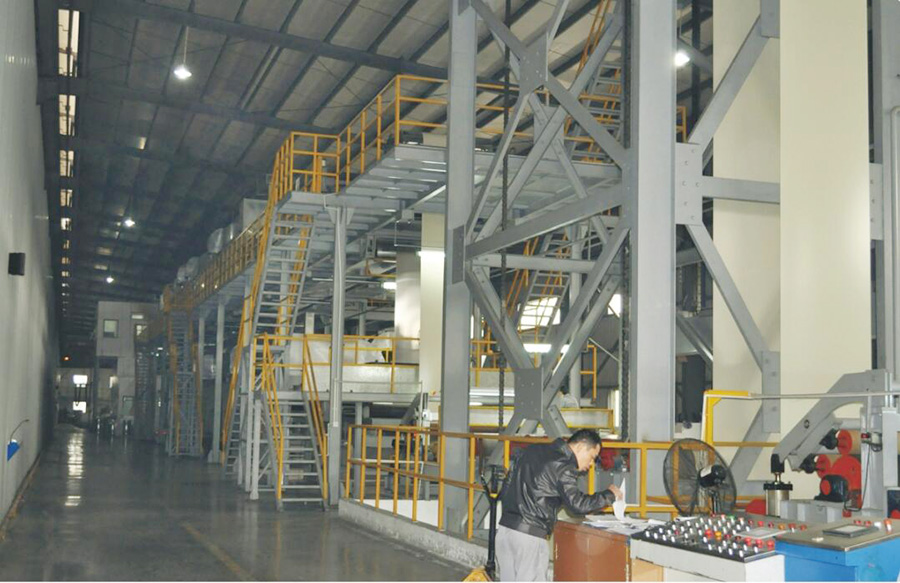

Environmental Protection System for Aluminium(Aluminum) Double Coating Line
An expert for the disposal of organic waste gases in the pre-painting industry
An expert for the disposal of organic waste gases in the pre-painting industry
|
Main Technical Parameters |
|
|
1. Aluminum Coating Line |
|
|
Coating type |
Double coating & single baking |
|
Raw material |
Aluminum coil |
|
Coil thickness |
0.02～1.0mm |
|
Coil width |
800～1600mm |
|
Coating speed |
<30m/min |
|
Coating thickness |
Dry film 18～30μm Paint solid content 45～50％ |
|
Drying channel dimension |
1300mm×2000 mm×30000mm |
|
Oven temperature range |
Zone I: 180℃～240℃ Zone II: 220℃～280℃ Zone III: 240℃～320℃ Zone Ⅳ: 240℃～280℃ |
|
2. Flue Gas Treatment |
|
|
Treatment method |
Heating |
|
Treated volume |
Max12000Nm3 |
|
Flue gas density |
0~8g/m3 |
|
Flue gas mixture |
Mainly benzene & fats |
|
Main Technical Parameters |
|
|
1. Flue Gas Treatment |
|
|
Flue gas temperature |
~250℃ |
|
Cracking temperature |
~750℃ |
|
Designed highest temperature |
800℃ |
|
Heat supply source |
Natural gas |
|
Consumption of natural gas |
Max1200000kcal/h |
|
Total installed power |
~125kw |
|
Heating for the oven |
Heat exchange and reuse of exhaust gas from the coating room |
|
Heating for pre-treatment |
Heat exchange and reuse of vapor and chemical hot air |
|
Model of induced draft fan |
Y5-48 10C 55kw, AC control |
|
Model of fresh air fan |
4-72 6C 5.5kw |
|
Model of vapor chemical fan |
4-72 6C 5.5kw |
|
Model of circulated air fan in oven |
Y4-72 6C 11kw |
|
Valve control |
Manual / automatic |
|
System control |
PLC programmable control |
|
System operation |
Manual / automatic |

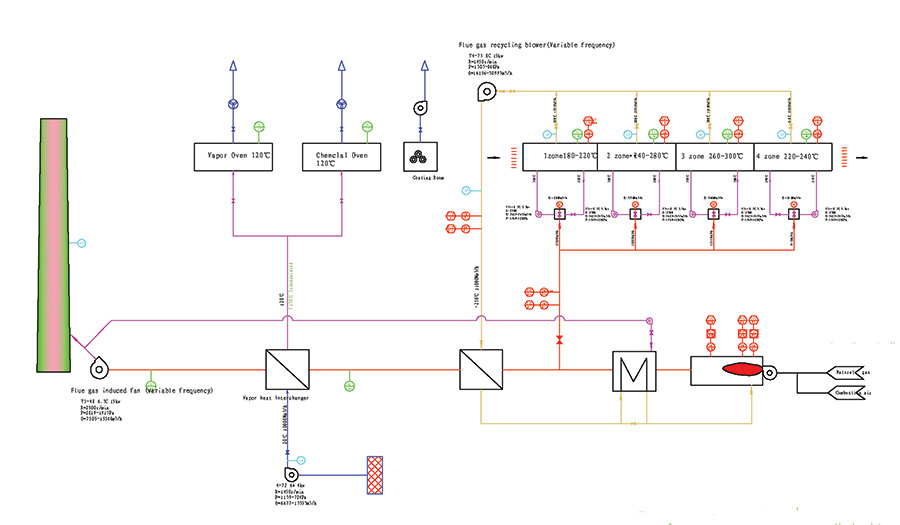

Flue Gas Treatment Process
Flue gas purification - Consists of burner, heating room, flue gas heat exchanger, flue gas draft fan, control system, pipes & valves
Afterheat reuse for oven heating - Consists of low-temperature fresh air heat exchanger, high-temperature fresh air heat exchanger, circulating fan, fresh air fan, control system, pipes & valves
Afterheat reuse for vapor & chemical ovens - Consists of heat exchanger, air fan, control system, pipes & valves
\
