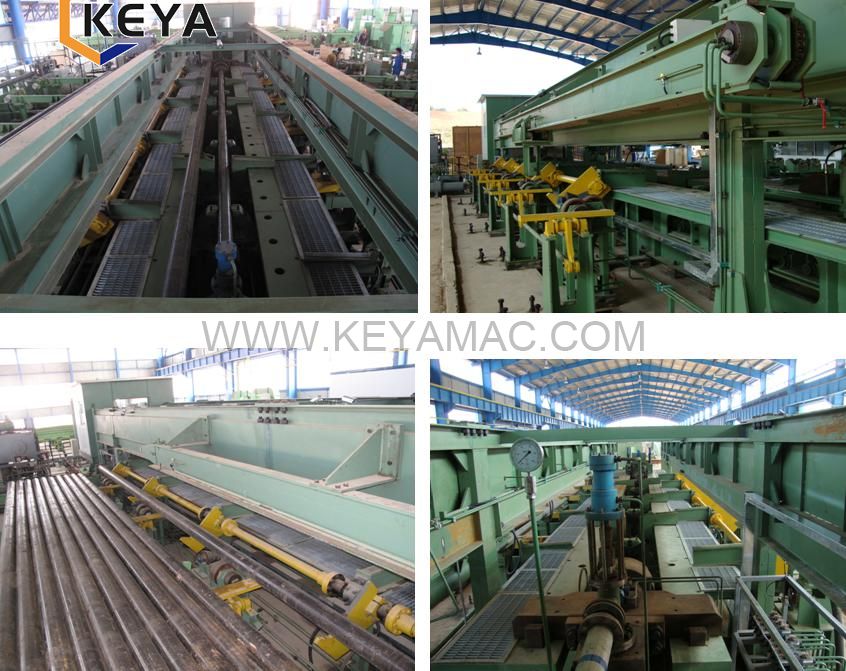

178mm Hydro Tester
The equipment is used for kinds of steel pipe pressure-bearing and testing non-standard equipment and it is the necessary equipment for every steel pipe manufacturer if they want to pass any international certificate.
The equipment is used for kinds of steel pipe pressure-bearing and testing non-standard equipment and it is the necessary equipment for every steel pipe manufacturer if they want to pass any international certificate.
Hydro tester adopts lifted rollers to hold the tested steel pipe, using the thrust of master cylinder to press the pipe between the thrust plate and the pressure plate, so that the pipe two ends can be sealed (end face seal or radial seal). Based on high-volume low-pressure pump to complete the water injection, and then use high-pressure pump to complete high pressure test. The equipment uses master oil cylinder thrust and smart balance control system (oil-water balance) to do hydrostatic testing. It adopts PLC programming smart control touch screen operating system, displaying the test pressure at real-time. The testing pressure curve can be automatically printed and also can be stored in computer hard disk.
The hydro tester is with simple structure, high production efficiency, wide range of product specifications, movable and lockable steel pipe pressure head push plate which can test various lengths steel pipes. The equipment applies to hydrostatic testing for seamless steel pipe, welded steel pipe and spiral welded pipe.
Technical Parameters of KY-SYJ-178:
1) Maximum test pressure：100 MPa
2）Testing Pipe Parameters:
Diameter：φ60～φ178mm;
Length：6～15m;
KEYA is specialized in providing comprehensive technical solution for different requirement from user.
Welcome to contact us for more info.
